Security Fog Generator

Product details:

Juswell JTZ-501 security fog generator is designed for release fog quickly, and it creates a thick cloud of mist to blind thieves when they break in, making it harder for them get away with your valuable property. The protection range reaches to 150 m3, and last 45min. It’s long enough for the police to arrive and action.

How the fog generator works?

Juswell fog generator can generate a harmless fog to disorient those who attempt a robbery or a theft, forcing them to flee. The fog is is suitable for food use, safe for anyone even the criminals. The protection area is 100 m3-150 m3 Closed or semi-closed area (height 2.5-3m, in 8 seconds). The fog is very dense and can last in a closed room for around 45 minutes. This will stop the criminals and save your property.

Physical details:

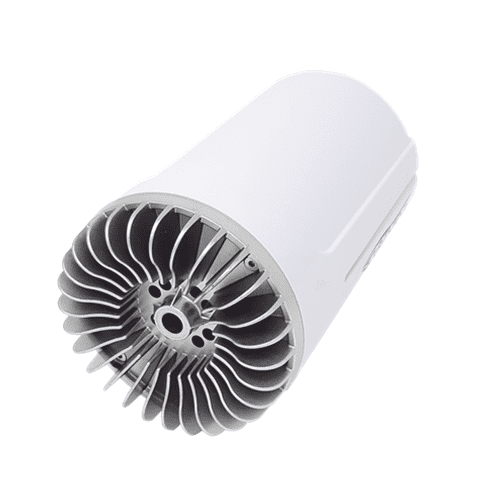

The main products, fog container and a filter.

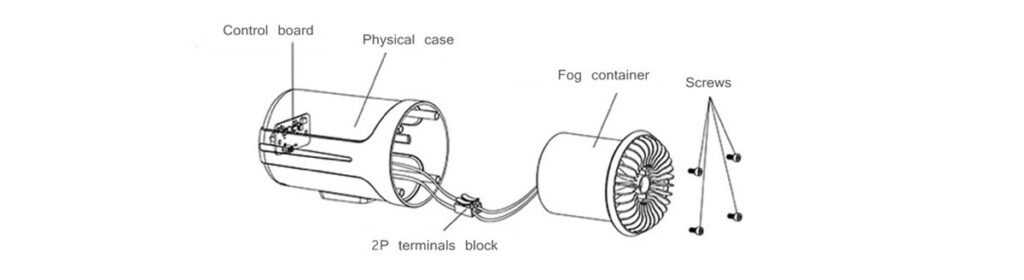

Interior view:

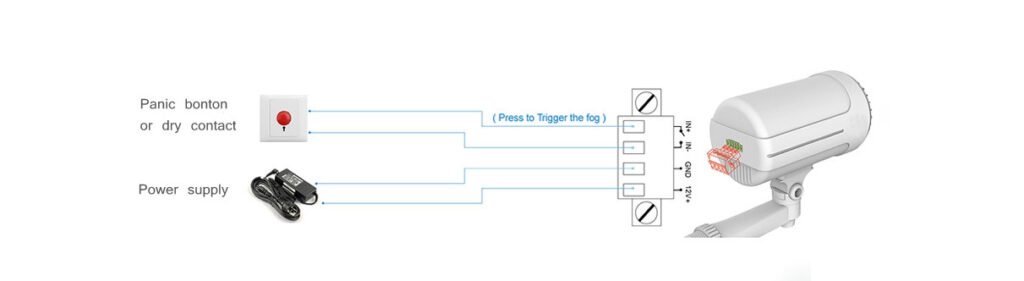

Connection diagram:

Easy installation:

Users only install the main products on bracket at first, then just need to change the fog container every time it’s triggered, convenient for users.

Installation scenarios:

Usually, robberies last 5 to 7 min, to stop the thefts, Foggy saturates the area with a white fog in a flash, which makes the environment so impenetrable that the criminals are completely unable to orient themselves and that stops the crime. As the fog lasts up to 30-45 minutes, it gives time to the police to arrive and force the criminals to run away: your goods are totally safe. Therefore, our security fog generators are widely installed for jewelry stores, chain stores, supermarkets, communication base stations, server rooms, ATM’s, warehouses, museums.

Features:

• 1 second trigger, 8 seconds cover the entire area with no warm-up time
• The mist module container can be replaced easily, the generator can be used for many times
• Biodegradable and completely safe for humans and animals; does not affect clothing, furniture and electrical equipment.
• Low energy consumption
• Compatible bracket wall mount
• Remind: It already includes a fog cartridge for a single ejection, it is recommended to purchase another JTZ-501PC for performance tests.

Specifications:

Power supply	DC12V 3A
Startup time	1 seconds
Time of fog fulling	8 seconds
Dense fog time	30~45 mins
Working humidity	-10%-80%
Working temperature	-10℃～+50℃
Protect area	100-150 m3 Closed or semi-closed area (height 2.5-3m)
Fog life time	JTZ-501P no more than 5 years
Fog trigger methods	Alarm/Remote/Panic button
Fog performance	Cold fog technology, 1 second activated, no warm-up time
Fog formula	Solid dry material, suitable for food use
