JS-G66W Wi-Fi&GSM Home Alarm System

We Would Be Happy To Assist You

JS-G66W Wi-Fi &GSM smart home alarm system provides protection for your house and property 24 hours a day. It supports PIR motion sensors, door sensors, remote controls, wireless sirens, etc.

When any thieves break into your house, the alarm system sirens alarm to frighten them first, to stop the criminal, meanwhile, it sends alarm signal to users immediately.

Additional information

Power input

DC 5V / 2A

WiFi standard

802.11 b/g/n, 2.4G

Radio frequency

433Mhz

Standby current

<150mA

Charging time

10 hours

Backup battery

4.2V 300mAH rechargeable lithium battery

Product Details

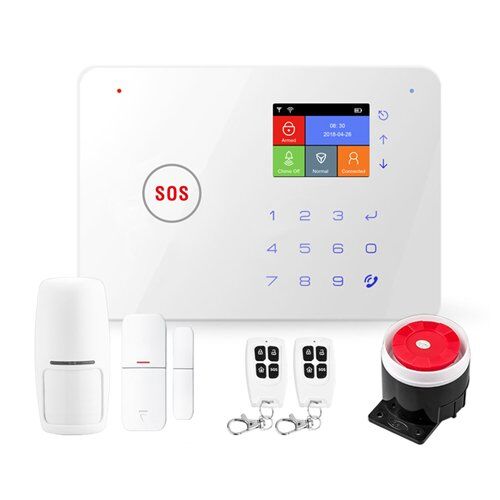

Juswell Wi-Fi & GSM Security Home Alarm System, it supports PIR motion sensors, door sensors, remote controls, wireless sirens, etc.

It’s immediate and accurate alarm when thieves break into your house. The alarm system will sound alarm to frighten the thieves first, to stop them from stealing your belongings, meanwhile, it sends alarm signal to inform users immediately.

Users can call the police or check potential intruders.

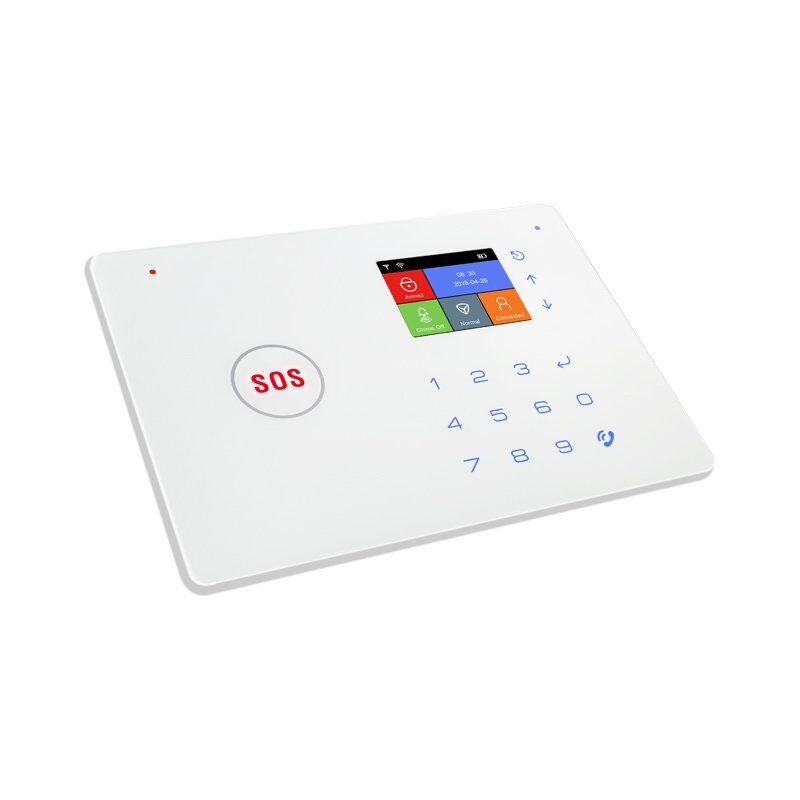

Touch keypad easy to setup:

2.4-inch color smart menu screen, touch keypad to set up the panel, it’s easy to finish setup without confusion, as some old panel solutions only have sound indication, it’s difficult for users to set up if they’re not familiar with the products and setting steps.

Support App setup and monitor:

Wi-Fi and GSM network, to double ensure that the panel is always online. Once the sensors detect any intruders break into your house, the panel will send alarm signal to your App immediately.

No intruders’ information will be missing.

Support DIY home alarm sensors:

You can customize your home with different PIR motion sensors, door or window sensors, smoke sensors, remote controls, sirens etc. Protect every corners of your house, to make your family feels safe.

Installation scenarios:

It can be used for homes, shops, convenience stores, financial rooms, villas, residential quarters, and urban networking alarms, even the factorys.

Features:

2.4-inch TFT display

Wi-Fi & GSM Network, easy for user to set the panel

Simple design and white housing, will be harmony with most home decorations

App/remote control/panel keypad, multiple methods for user to setup the panel

Support 8 wireless remote controls, 45 wireless defense zones

Support 10-second voice record, DIY voice notification

Support 6 phone numbers and 3 SMS numbers

Support 2 groups of time arm/disarm/home arm setting

Support elder people zone for motion detection, will inform you once panel detects any abnormal situation

Specification:

Power Input: DC 5V / 2A

Standby current: <150mA

Alarm current: <350mA

Siren volume: 120dB

Battery last time: 6 hours

Full charged time: 10 hours

Wi-Fi standard: 802.11 b/g/n, 2.4G

Maximum sensors: 8 remote controls, 45 wireless sensors

Alarming numbers: 6 alarm phone numbers,3 SMS numbers

Backup Battery: 4.2V 300mAH rechargeable lithium battery

Receiving radio frequency: 433MHz(±75KHz), PT2262 / 4.7MΩ EV1527/300K

Transmitting radio frequency: 433MHz(±75KHz), PT2262 / 4.7MΩ EV1527/300K

RF distance: remote controls are 40m max, sensors are100m max

Factory default password: 1234

Working temperature: -10℃~+50℃

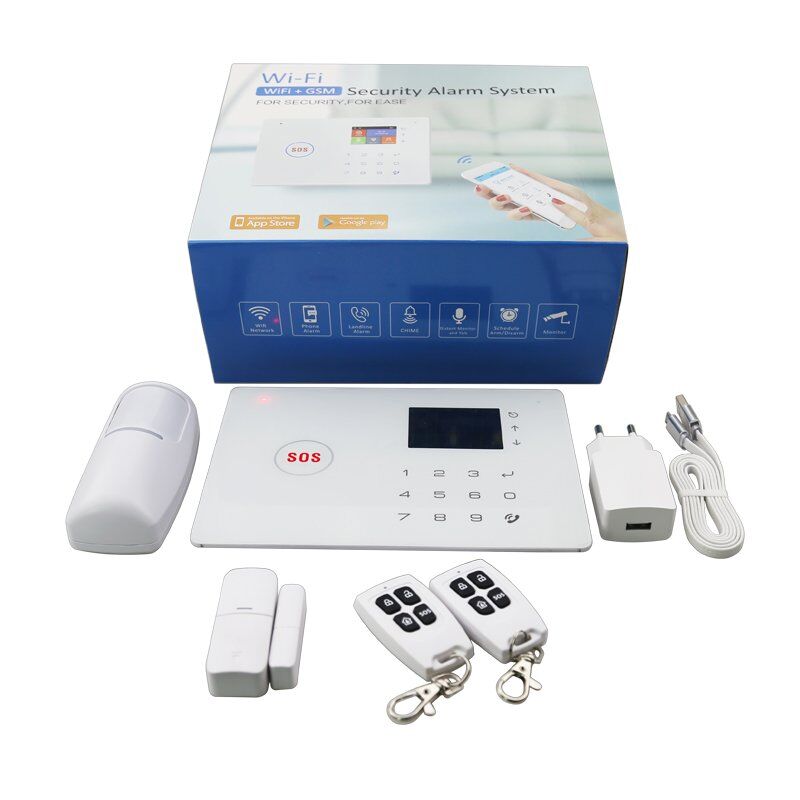

Package:

Alarm panel x 1

Remote Control x 2

PIR Motion Detector x 1

Door/Window Sensor x 1
