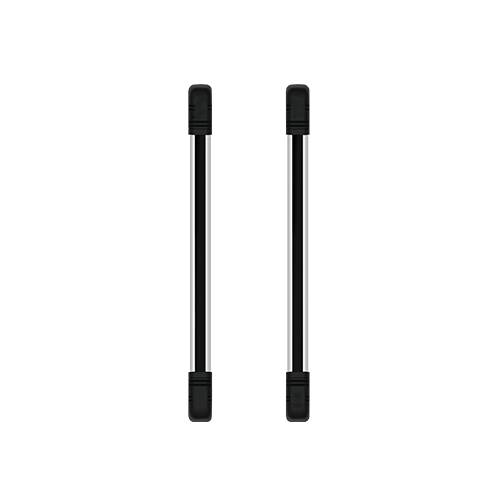

The Juswell multi-beam barrier sensors are developed for perimeter protection. The technology is that infrared sensors create a virtual fence with a length up to 100 meters and a height up to 204cm, the barrier sensors immediately detects and sends alarm signal to central panel when any objects, person or animals that cross the infrared virtual fence.
| Power input | DC12~18V |
|---|---|
| IP degree | IP65 |
| Indoor range | 300m maxmum |
| Outdoor range | 10/60/100m |
| Beam distance | 16cm |
| Beams quantity | 2/4/6/8/10/12 beams |
Make your environment more security. The sensors create a virtual fence up to 100 meters long and 204cm high, it offers complete perimeter protection.
Due to its advanced technology and IP65 degree of protection, the sensor adapts to various weather conditions and indoor/outdoor installation, preventing unwanted false alarm occurring.
Practical and sensitive, the ABI serials barrier sensors offer greater ease of installation. First, the infrared signal is very strong to cover maximum 300m, it’s easy to make receiver and transmitter pair. Second, audible alignment signaling, installers can adjust to best alignment quickly.
Safe and interference-free protection between sensors. With 2 different frequency levels, installers can configure the sensor pairs for different needs, avoiding the occurrence of interference in the operation.
Consider of different installation situation, there’re always little birds and small cats/dogs passing the virtual fence. To avoid accidental shooting with birds and small animals, and cause wrong alarm, the sensor only sends alarm signal when adjacent beams were interrupted.

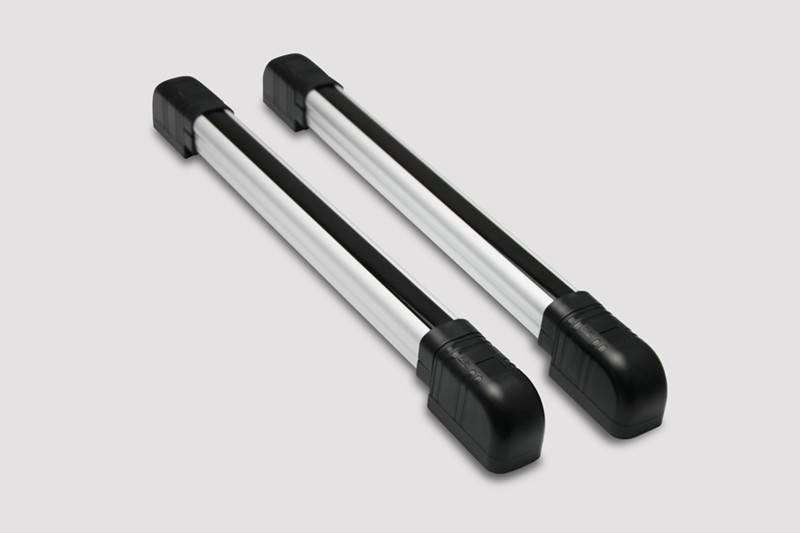

Aluminum housing with advance craft, it’s stainless and keeps shine after year installation
Fully sealed structure, IP65 standard, make it durable for both indoor and outdoor
Anti-tamper function, it detects and alarm if professional thieves tries to disable the sensors
Two frequency channels, avoiding interference caused by adjacent rays
Audible alignment signal, easy for alignment
Alarm condition: any two adjacent beams interruption, avoid accidental shooting with birds and small animals
Adjustable response sensitivity,
9.Designed and recommended for protection of doors and windows.
Advance technology, the sensors are stable and won’t cause false alarm in sunlight, rain, frost, fog, snow weather.
| Model | ABI 2 rays | ABI 4 rays | ABI 6 rays | ABI 8 rays | ABI 10 rays | ABI 12 rays |
| Dimension(mm) | 480*39*48 | 760*39*48 | 1080*39*48 | 1400*39*48 | 1720*39*48 | 2040*39*48 |
| Weight(g) | 700 | 1000 | 1300 | 1800 | 2200 | 2500 |
| Detection method | Interruption of adjacent two beams | |||||
| Outdoor Range | 10m/60m/100m optional | |||||
| Indoor Range | Maximum 300m | |||||
| Power Supply | DC12~18V | |||||
| Current Consumption | 50~90mA max | |||||
| Response speed | 40ms | |||||
| Beam distance | 16cm | |||||
| Protection Degree | IP65 | |||||
| Environment Humidity | 95% max | |||||
| Operating Temperature | -25℃ to +55℃ | |||||
| Beam frequency | 2 channel frequency ( A and B ) | |||||
| Tamper Switch | NC, opens when cover removed | |||||
| Alarm Output | Switch output signal, NO, NC optional | |||||
| Material | PC engineering plastic, Aluminum housing | |||||
| Alignment Angle | Horizontal 180°(±90°), Vertical un-adjustable | |||||

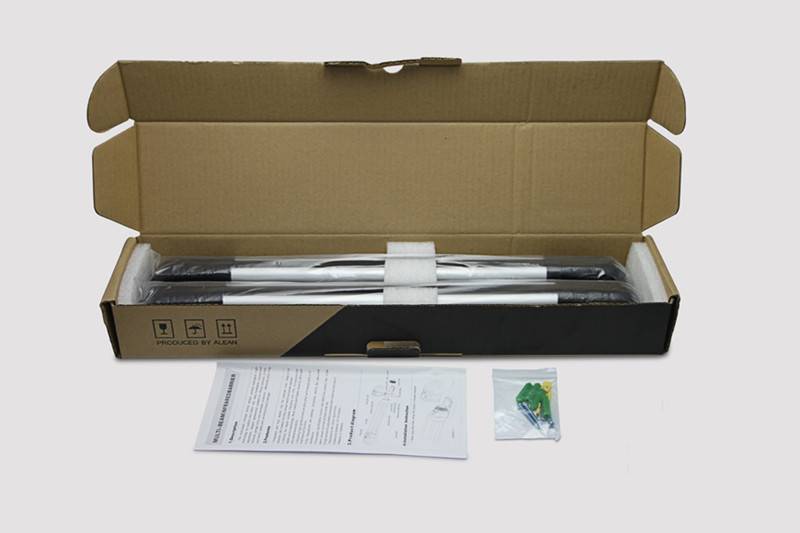

Transmitter sensor x1
Receiver sensor x1
Installation kit x1
User manual x1
