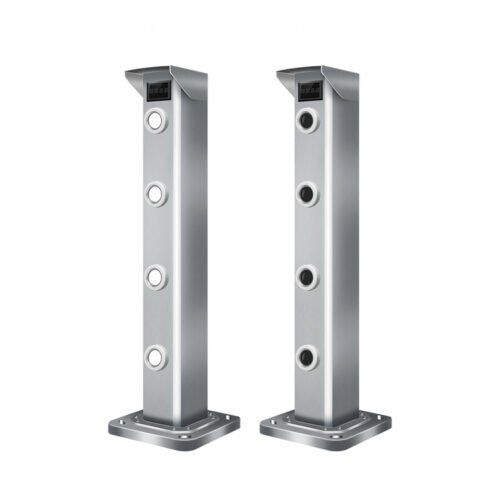

ABL Laser Beam Sensor

Perimeter protection:

The Juswell laser beam sensor provide installers a stable solution for perimeter protection.

The technology is that laser sensors create a virtual fence, the sensors immediately detect and send alarm signal to central panel when any objects, person or animals that cross the laser virtual fence.

Compared with infrared sensor, laser beam distance range is longer, and available for special environment, like transformer substation, airport perimeter, etc.

Easy for alignment:

Practical and sensitive, the laser beam sensors offer greater ease of installation. First, it supports debug mode to enlarge transmitting power, it’s easy to make receiver and transmitter pair. Second, alignment tool accessories, helping installers adjust to best alignment quickly.

IP67 protection:

We adopt advanced technology and make the sensor as IP67 degree. The sensor is available for various weather conditions, both indoor and outdoor scenarios, preventing unwanted false alarm occurring.

Methods of alarm trigger:

Users can adjust alarm method by block one beam, two beams, or three beams according to different scenarios. Considering of different installation situation, it’ll avoid accidental shooting to cause false alarm.

Adjustable of interruption time:

Users can adjust alarm interruption time according to different scenarios, 50ms/100ms/300ms/700ms optional. Considering of different installation situation, it’ll avoid accidental or unwanted false alarm.

Features:

Detection range: 0-500m

Laser sensor life last 150,000 hours

The laser light is class I, friendly to human eyes

Wide alignment angel, horizontal ±15°, vertical ±15°

Response time is 50ms/100ms/300ms/700ms optional

IR67 degree, stable in weather like frost/rain/snow/fog, etc.

Four-bit led display, easy for alignment or monitoring sensor situation

Beam distance is 15cm, avoiding interference caused by adjacent beams

Easy for alignment, installers can switch between working mode or debugging mode

Multiple alarm ways, interruption one beam/two beams/or several beams, available for different applications

Reserve bracket position on the top, available for IR camera, alignment tool or other accessories installation

Intelligent frequency conversion technology, each beam is unique transmitting and receiving frequency, avoiding interference caused by adjacent sensors

The laser sensors create a virtual fence, the barrier sensors immediately     detect and send alarm signal to central panel when any objects, person or animals that cross the virtual fence

Specifications:

Power input	DC9～30V/AC9～20V
Working current	450mA
Transmitting angle	<8°
Receiving angle	>10°
IP degree	IP67
Beam distance	15cm
Outdoor detection distance	Maximum 500m
MTBF	>150000 hours
Alarm time	1-30s optional
Adjustment angle	Horizontal±15°, vertical±15°
Response time	50ms/100ms/300ms/700ms optional
Beam frequency	Each beam has a unique frequency
Detection method	Block adjacent 2 laser beams(default)
Laser wavelength	980nm (optional 660nm visible red light)
Alarm output	Relay NC or NO optional
Material	Housing: 304stainless steel; center support column: aluminum alloy; base: aluminum
Working environment	Temperature -20℃-55℃/humidity:95% max
Installation situation	Indoor/outdoor, wall/pole installation

Package:

Transmitter sensor x1

Receiver sensor x1

Installation kit x1

User manual x1
