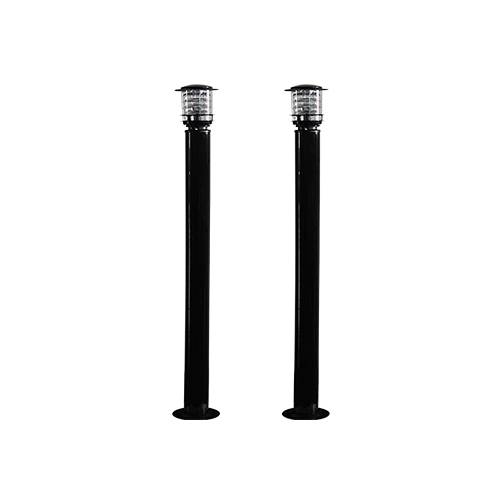

ABL Infrared Tower Sensor

Perimeter protection:

The IR tower Lamps provide installers a solution to solve the common difficulty, when installing security devices may break the overall integrity and style of areas.

Therefore, IR towers are ideal for perimeter protection soltion, available for private residences, malls, sport centers, parking lots, hotels, etc.

Elegant design:

The Juswell IR towers are designed not only to protect residential perimeter, and hide active infrared barrier sensors inside, but also to provide an elegant aesthetic and illumination. Intruders are unable to distinguish the existence, quantity, position, type and orientation of these security sensors.

Wide protection range:

The Juswell IR tower technology is that infrared sensors create a virtual fence with a length up to 100 meters and a height up to 204cm. That says you could choose the best-fit column height accordingly to your installation environment.

IP65 protection:

Due to its advanced technology and IP65 degree of protection, the sensor adapts to various weather conditions and indoor/outdoor installation, preventing unwanted false alarm occurring.

Alarm with interruption of two adjacent beams:

Consider of different installation situation, there’re always little birds and small cats/dogs passing the virtual fence. To avoid accidental shooting with birds and small animals, and cause wrong alarm, the sensor only sends alarm signal when adjacent beams were interrupted.

Features:

IP65 standard, make it stable for outdoor installation

Black PC column, and lamp design, disguise as lampstand.

Two different frequency levels, avoiding interference caused by adjacent sensors

Designed for protection of private residences, malls, sport centers, parking lots, hotels, etc.

Anti-tamper function, it detects and alarm if professional thieves tries to disable the sensors

Alarm condition: any two adjacent beams interruption, avoid accidental shooting with birds and small animals

Advance technology, the sensors are stable and won’t cause false alarm in sunlight, rain, frost, fog, snow weather.

Specifications:

Model	ABL 4 rays	ABL 6 rays	ABI 8 rays	ABI 10 rays
Dimension(height*φcm)	85*13	120*13	150*13	185*13
Weight (KGS)	5.00	7.00	10.00	12.00
Detection method	Simultaneous interruption of adjacent 2 infrared beams
Outdoor Range	10m/60m/100m optional
Indoor Range	300m max
Power Supply	DC12~18V
Current Consumption	50~90mA max
Response speed	40ms
Beam distance	16cm
IP degree	IP65
Environment Humidity	95% max
Operating Temperature	-25℃ to +55℃
Beam frequency	2 frequency channels ( A and B )
Tamper Switch	NC, opens when cover removed
Alarm Output	Reply output signal, NO or NC optional
Material	PC engineering plastic, Aluminum housing
Alignment Angle	Horizontal 180°(±90°), Vertical un-adjustable

Package:

Transmitter sensor x1

Receiver sensor x1

Installation kit x1

User manual x1

PC column x2

Lamp x2

Base x2
