ABI Wireless Infrared Barrier Sensor

We Would Be Happy To Assist You

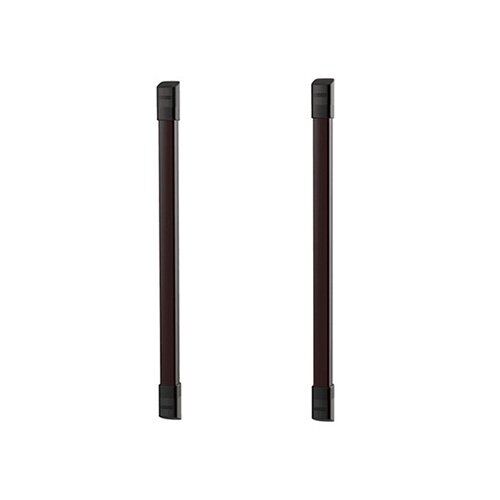

The Juswell wireless barrier sensors are developed for door or window perimeter protection. The infrared sensors create a virtual fence that it’s 10m length, when any thieves try to cross the sensors, the barrier immediately detects and sends alarm signal to central panel.

Additional information

IP degree

IP66

Battery life

3 years

Power input

Lithium battery, DC12V

Outdoor range

10m

Radio frequency

433Mhz/ZigBee

Wireless distance

100m in the open air

Product Details

Wireless solution easy for installation:

Are you annoy by mess wire connection when you install barrier sensors? ABI wireless barrier sensor is a wire free solution. All you do is install the transmitter and receiver on doors/windows two sides, then pair wireless signal with central panel.

Safe perimeter protection:

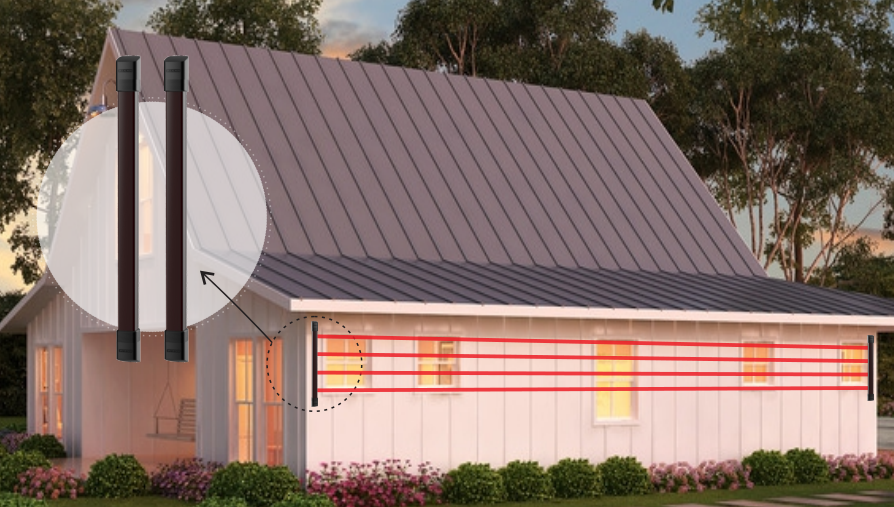

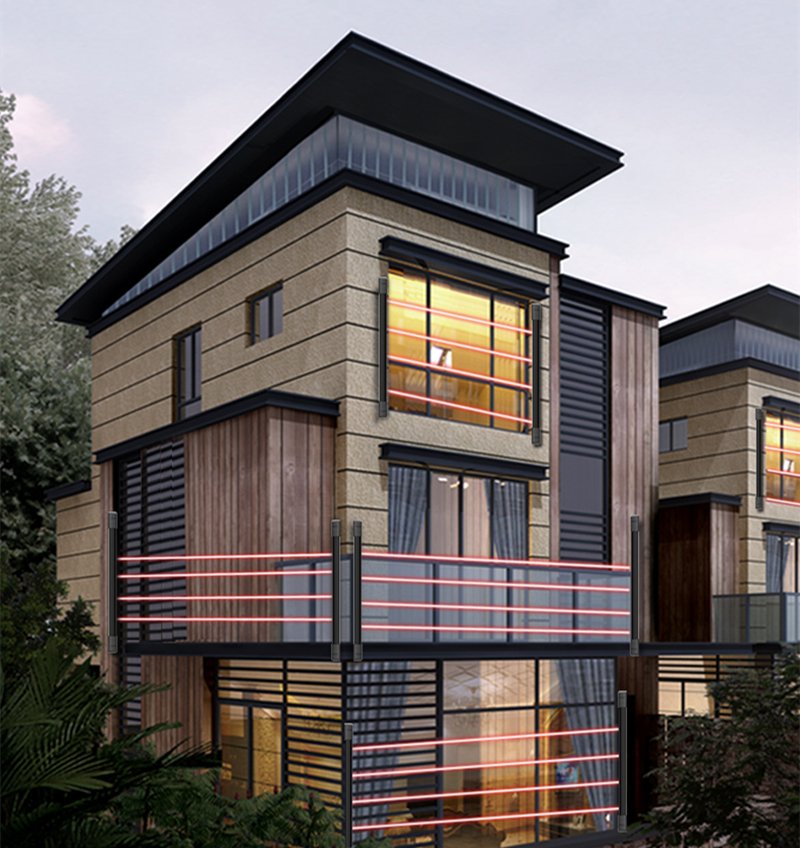

Make your environment more security. The sensors create a virtual fence up to 10 meters long to protect perimeter environment, cover most distance of windows, doors, garages.

Due to its coding technology, you can install several barrier sensors, they are safe and interference-free.

IP66 available for indoor and outdoor scenarios:

Due to its advanced technology and IP66 degree of protection, the sensor adapts to various weather conditions and indoor/outdoor installation, preventing unwanted false alarm occurring.

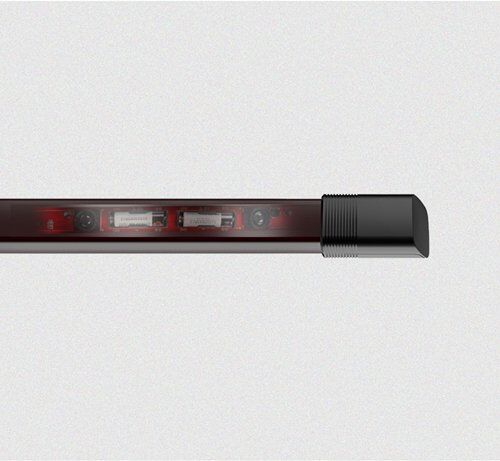

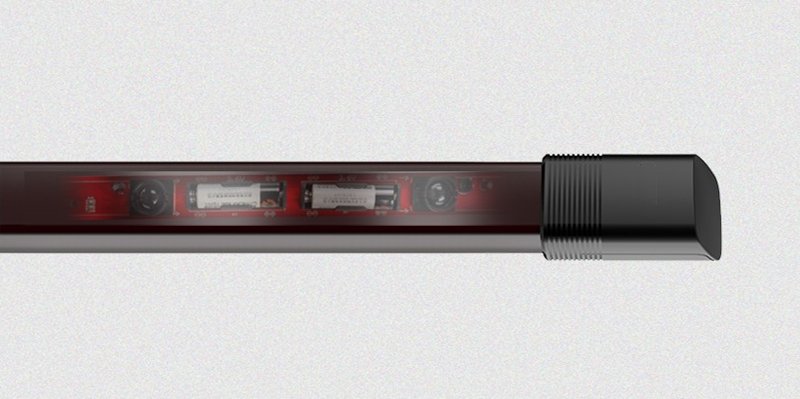

Lithium Battery:

Lithium battery power supplier, it can last 3 years, avoiding bad user experience because of frequency battery changing.

No power line, free installation, you can buy and DIY installation yourselves.

Alarm with interruption of two adjacent beams:

Consider of different installation situation, there’re always little birds and small cats/dogs passing the virtual fence. To avoid accidental shooting with birds and small animals, and cause wrong alarm, the sensor only sends alarm signal when adjacent beams were interrupted.

Specifications:

Model ABW 2 rays ABW 4 rays
Dimension(mm) 430*39*39 648*39*39
Outdoor Range 10m
Protection Degree IP66
Interruption time >40ms
Battery life 3 years
Radio frequency 433Mhz/ZigBee
Power Supply Lithium battery
Operating Temperature -25℃ to +55℃
Current Consumption Tx<60uA; Rx<100uA
Wireless distance 100m in the open air
Detection method Interruption of adjacent two beams
Alignment Angle Horizontal 180°(±90°), Vertical un-adjustable
Alarm Output Wireless signal or enable to turn to NC/NO output

Package:

Transmitter sensor x1

Receiver sensor x1

Installation kit x1

User manual x1
